02-1317 - Vacuum Pump BVT600


Descrição do produto

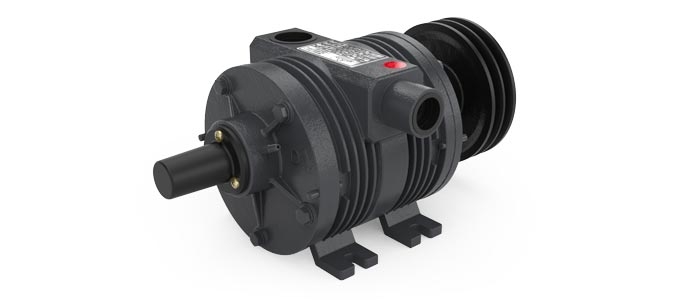

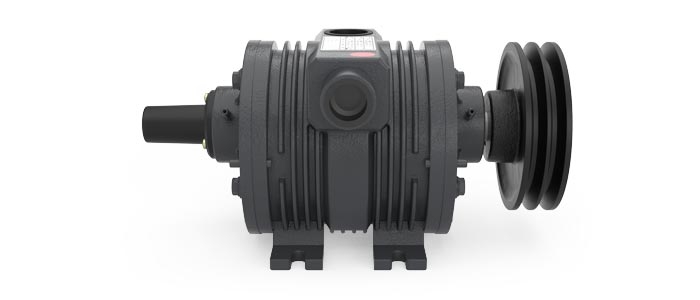

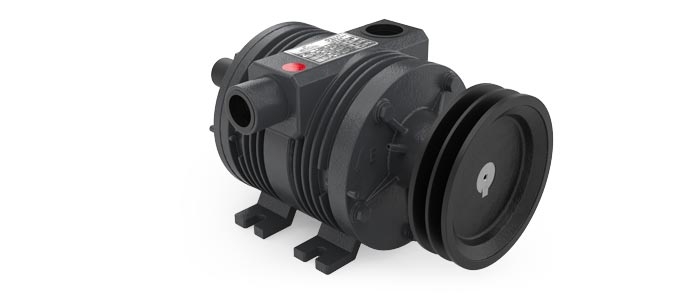

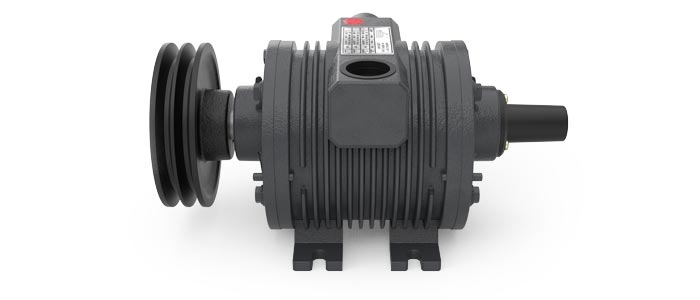

Vacuum Pump BVT600, capacity of producing 600 liters of vacuum at 50 kPa, for milking systems with up to 5 points operating simultaneously. Installed directly in vacuum depositions or on fixed base. Epoxy painting resistant to high temperatures. Electronically tested for a controlled and accurate output. Includes pulley.

Pulley Pump

Pulley Motor

Weight

Peso

Part Bearing

Retainer

Exhaust Silencer for BVT600

Ø150mm

Ø95mm

2 CV

1,47 KW

22,55 KG

6205

1543 BR

(02-1325)

BVT 600/900

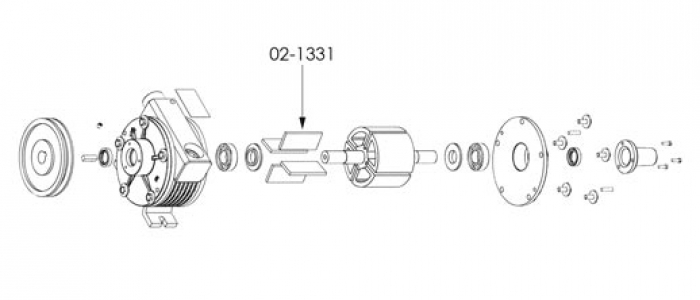

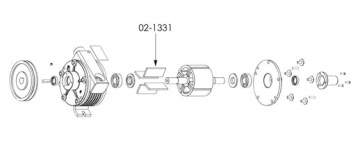

02-1331

Vacuum Pump Vanes for BVT600
