Pulsator


Descrição do produto

The Pulsator was developed aiming at the simplicity of handling, maintenance and operation. Designed with high quality materials and combined with great mechanical accuracy, it guarantees a complete, fast and uniform milking.

Avaliable with 3 pulsation ratio:

60/40, 70/30, 50/50

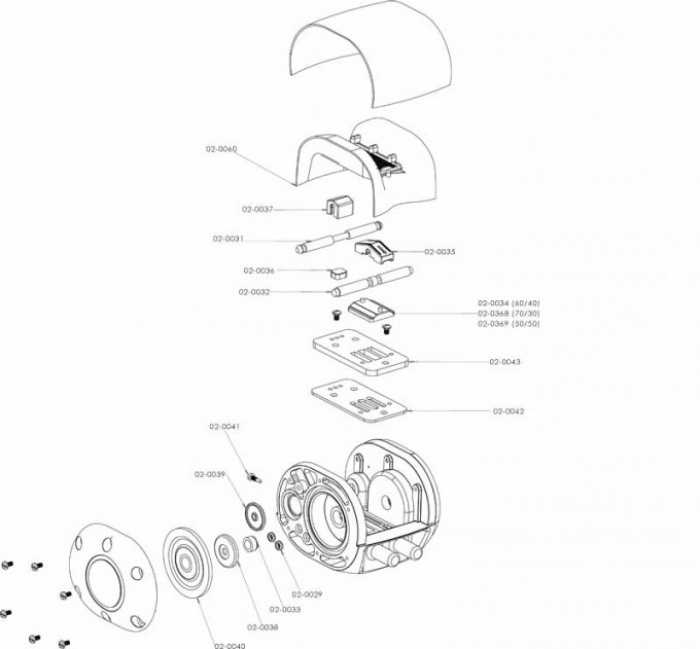

02-0060 Filter Pulsator
02-0035 Large slide locating block
02-0036 Small Slide
02-0037 Small slide locating block
02-0034 Large slide ratio- 60/40
02-0368 Large slide ratio - 70/30
02-0369 Large slide ratio - 50/50
02-0042 Valve plate gasket
02-0029 Pulsator O-ring 6mm
02-0041 Adjustment screw speed
02-0039 Small diaphragm
02-0033 Main Spindle bush
02-0038 Plastic washer
02-0040 Main diaphragm



02-0001 Pulsator ratio 60/40
02-0521 Pulsator ratio 70/30
02-0522 Pulsator ratio 50/50



PULSADOR
